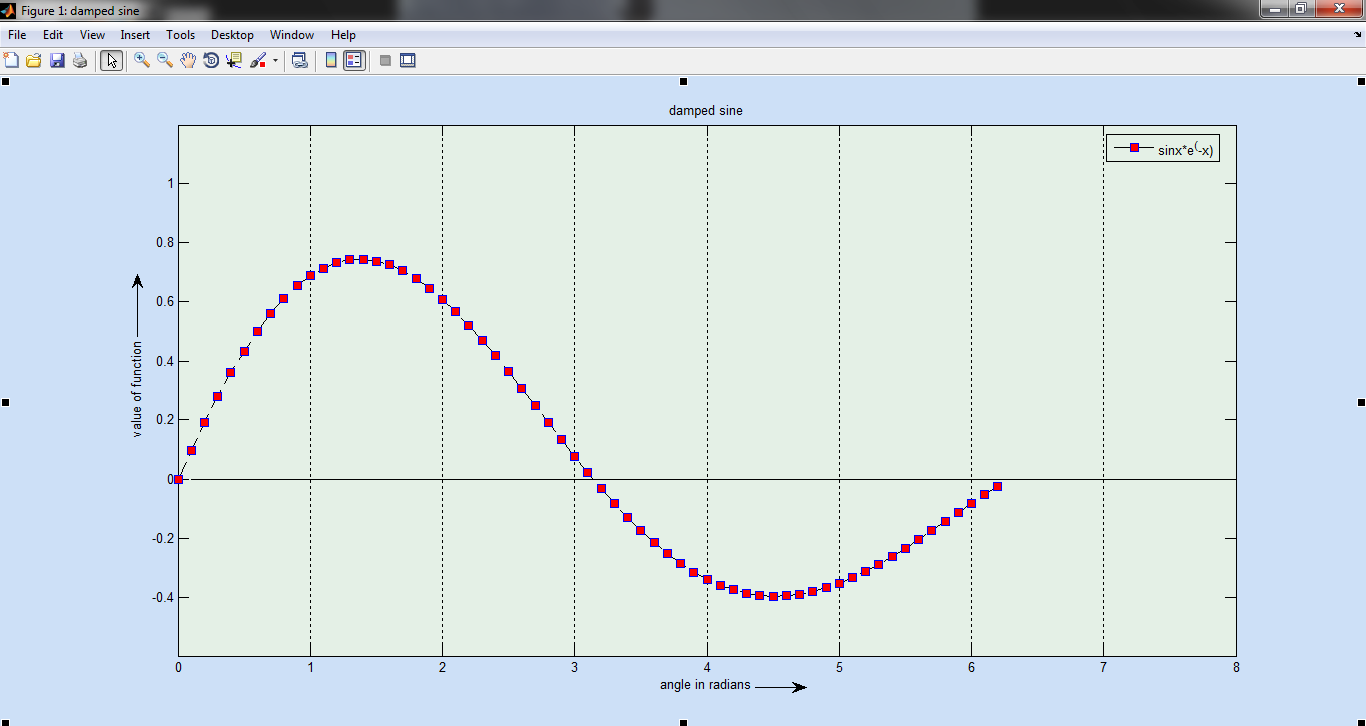

How to plot more than one data series at a time in MATLAB, including how to make it pretty and add a legend. MATLAB: Plotting 2 lines in the same graph. MATLAB plotting. How can i get the 2 plots to come out on the same figure?%% Problem parameters% Projectile. Figure; subplot (1,2,1) plot (firstdata) subplot (1,2,2) plot (seconddata) This will create two axes areas within the same figure window. From your description, this is my best guess as to what you want. Edit: From the comments below, here is what you are doing. Plots can be created using graphic functions or interactively using the MATLAB Desktop. Types of 3D Plots in MATLAB. Below we have discussed the types of 3D plots in MATLAB used in computing. PLOT3 (Line Plots) Plot3 helps in creating 3D lines or Point Plots. Plot3(x,y,z): If x,y,z are vectors of the same length, then this function will. In order to compare the results side by side, you may need to plot multiple graphs on a single figure in Matlab. This short video is about the same thing.
Contents
This document gives BASIC ways to color graphs in MATLAB. See
and
for more in-depth explanations and fancier coloring, to name just two sources.
Default Colors in 2D Graphs
The default colors used in MATLAB changed in R2014b version. Here are the colors, in order, and their MATLAB RGB triplet.
| Current color | Old color | ||
|---|---|---|---|
| [0, 0.4470, 0.7410] | [0, 0, 1] | ||
| [0.8500, 0.3250, 0.0980] | [0, 0.5, 0] | ||
| [0.9290, 0.6940, 0.1250] | [1, 0, 0] | ||
| [0.4940, 0.1840, 0.5560] | [0, 0.75, 0.75] | ||
| [0.4660, 0.6740, 0.1880] | [0.75, 0, 0.75] | ||
| [0.3010, 0.7450, 0.9330] | [0.75, 0.75, 0] | ||
| [0.6350, 0.0780, 0.1840] | [0.25, 0.25, 0.25] | ||
Another thing that changed starting in the R2014b version is that the hold on and hold off automatically cycles through the colors. In the past, each new plot command would start with the first color (blue) and you would have to manually change the color. Now it will automatically move to the next color(s). See below for how to manually adjust the colors.
Default Colors in 3D Graphs
If using mesh(x,y,z), to change the look of it you would want to change 'EdgeColor'. Note that the name of this colormap is 'parula' while previous to R2014b, it was 'jet'
Using Basic Colors in Graphs
The eight basic colors are known by either their short name or long name (RGB triplets are also included).
2 Plots Same Graph Matlab
| Long Name | Short Name | RGB Triplet |
|---|---|---|
| blue | b | [0,0,1] |
| black | k | [0,0,0] |
| red | r | [1,0,0] |
| green | g | [0,1,0] |
| yellow | y | [1,1,0] |
| cyan | c | [0,1,1] |
| magenta | m | [1,0,1] |
| white | w | [1,1,1] |
Example of how to change the color using short names is below. You can easily do the same thing using the long names.
Changing Colors
Many times you want to have more control of what colors are used. For example, I may want some data points drawn in the same color as the curve. Or I have a piece-wise graph that I want to have all the same color. There are several ways to do this. One is to use the default colors and 'resetting' the order, which is shown here. Others involve using the RGB triplet (see next section).
As you may see, this could get confusing to keep track of. Thus it may be easier to use the RGB triplets, and even name them ahead of time. This is discussed in the section below.
Using RGB triplets to change colors
One can specify colors using a vector that gives the RGB triple where in MATLAB, each of the three values are numbers from 0 to 1. Usually RGB colors have values from 0 to 255. You can use those numbers and divide the vector by 255 to use within MATLAB. Thus knowing the MATLAB RGB triples for the colors can be useful. From the table above, we can define the default colors to work with them or can put in the RGB triplet (as a vector) directly into the plot command. Both are shown in this example.
For other colors, you can look up their RGB code on many websites such as RGB Color Codes Chart or HTML Color Picker to see the RGB codes (or hex codes, etc.) For example, at these RGB Color websites, you will be given R=255, G=0, B=0 for red. So you can use 1/255[255,0,0] to get the color of red to use as a color in MATLAB.
The official color for Loyola Green is given as RGB:0-104-87, and Loyola Gray is given as RGB:200-200-200 (found on Loyola's Logos/University Signature page. Here's how one can use those colors in MATLAB.
Now one can use these colors to specify the color of markers, lines, edges, faces, etc.
Changing colors in 3D Graphs
If using mesh(x,y,z), to change the look of it you can change to a different colormap as discussed in https://www.mathworks.com/help/matlab/ref/colormap.html. This was done above when showing the previous default colormap. Here are some more.
2 Plots Same Graph Matlab Function
Warning! Once you change the colormap, it will keep that colormap for all subsequent 3D plots within the same figure or MATLAB session until you use close, or open a new figure window.
2 Plots Same Graph Matlab Inequality
For mesh and surf, you can change 'EdgeColor' and/or 'FaceColor' to be uniform, rather than using colormaps.
2 Plots Same Graph Matlab Functions
2 Plots Same Graph Matlab Equation
Published with MATLAB® R2016a
